HPC-1511
Detailed
Support for Intel ® Bay Trail, Twin Lakes, Elkhart Lake, 6th generation Sky Lake&7th generation Caby Lake, 8th generation Whiskey Lake, and 10th generation Comet U processor
Supports SO-dmm, M-SATA, M.2 SATA, and M.2 NVME storage

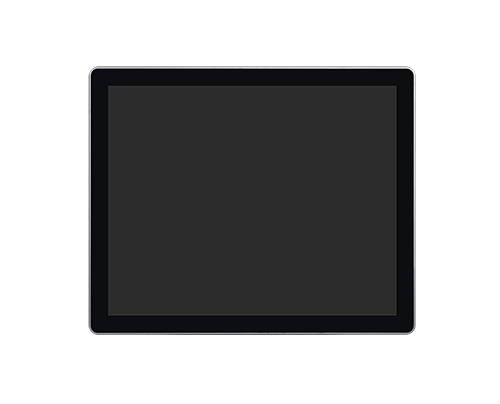

Standard 15 inch high-definition display screen, resistive touch screen, supporting dual display
Standard dual network ports, some configurations support Intel encryption, TPM2.0 supports 8 GPIOs
Supports 1 * Mini PCIE (for WIFI), 1 * SIM supports 3G, 4G, and 5G modules
Supports VISA bracket installation, wall mounted and desktop mounted
12-24 volt wide voltage power supply, with a wind free design, patented industrial design, and elegant appearance
Panel protection level: IP65 waterproof and dustproof
ESD Protection: ±6kV (Contact ), ± 12kV (Air)
The product can be widely used in industries such as MES, store displays, self-service terminals, etc
Product Model  HPC-1511 Pilot lamp Reserved power supply under the screen, hard disk status indicator light Dimensions  351x275x61mm
Display 15 Trumpet 2 x 4 ? 3W Weight < 3.8kg
Touch Screen  Resistive Touch Screen Heat dissipation Fanless Product  colour Space Gray
Resolution Ratio  1024*768 Overall Power Consumption <25W (screen 7.4W) Chassis material Aluminum alloy structure
Luminance  300cd/㎡ Installation Method Compatible with embedded, wall mounted, and desktop versions
CPU Elkhart Lake  Sky Lake (Generation 6-7) Whiskey Lake (Generation 8-10)
BIOS AMI  BIOS AMI  BIOS AMI  BIOS
Chipset  Intel® SOC Intel® SOC Intel® SOC
Display  Intel ®  Graphics nuclear display  Intel ®  HD Graphics nuclear display Intel ®  HD Graphics nuclear display
Network  2 * Intel I226-V Gigabit Network Card 2 * Intel I211 Gigabit Network Card Intel I219 Gigabit Network Card+I211 Gigabit Network Card
Audio Realtek ALC269HD Realtek ALC662HD Realtek ALC662HD
Memory  DDR4 3200MHz  Max 16G DDR4 2133 MHz Max 16G DDR4 2400MHz Max 16G
Hard dive  M.2 2280 NVME128GB M-SATA 128G M.2 2280 NVME128GB
Functions  Support WiFi, Bluetooth, 4G, watchdog, diskless startup, wake-on-LAN, power on startup Support WiFi, Bluetooth, 4G, watchdog, diskless startup, wake-on-LAN, power on startup Supports WiFi, Bluetooth, 4G, watchdog, diskless startup, network wake up, power-on and startup

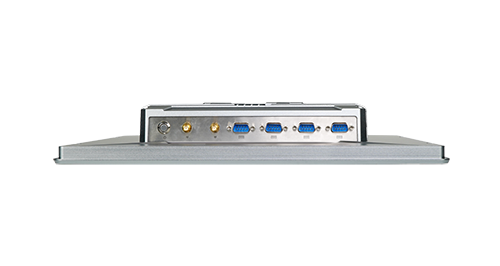

Front I/O 1 * Switch 2 * Antenna  4 * COM 1 * Switch; 2 * Antenna; 2*COM 1 * Switch; 2 * Antenna; 2*COM

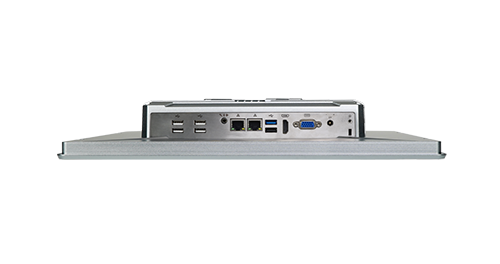

Rear I/O 1 * Audio interface
1 * DP interface
1 * HDMI interface
1 * USB2.0 interface
3 * USB3.1 interface
2 * LAN interface
1 * DC IN interface
4 * USB interface
1 * M3 grounding screw hole
1 * CMOS button
Supports 8 * GPIO		 1 * Audio interface
2 * LAN interface
2 * USB3.0 interface
1 * HDMI interface
1 * VGA interface
1 * DC IN interface
4 * USB interface
1 * M3 grounding screw hole		 1 * Audio interface
1 * DP interface
1 * HDMI interface
4 * USB3.2 interface
2 * LAN interface
1 * DC IN interface
4 * USB interface
1 * M3 grounding screw hole
1 * CMOS button
Supports 8 * GPIO
Power IN DC 9V~24V wide voltage DC 12V~24V wide voltage DC 12V~24V wide voltage
OS support Windows 7 / Windows 10 / Linux Windows 7 / Windows 10 / Linux Windows 7 / Windows 10 / Linux
Power Adapter INPUT : 100-240V  50/60Hz  INPUT : 100-240V  50/60Hz  INPUT : 100-240V  50/60Hz
Output : 12.0V/5.0A Output : 12.0V/5.0A Output : 12.0V/5.0A
certification CCC / CE / FCC / RoHs CCC / CE / FCC/ RoHs CCC / CE / FCC / RoHs
  National standard Parameter Description
EMC GB/T 9254.1-2021
Radio disturbance limits and measurement methods for information technology equipment

Radiation disturbance (B) level

 Conducted disturbance (B) level
GB/T 17618-2015                                                            Information technology equipment immunity limits and measurement methods Meet the requirements of 6KV contact discharge and 12KV air discharge
Safety GB 4943.1-2011
Information technology equipment security - Part 1: General requirements		 Grounding resistance: ≤ 0.1 Ω
Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
Insulation resistance: ≥ 100M Ω
Leakage current: ground leakage current ≤ 3.5mA
Environment GB/T 9813.4-2017
General specification for computers - Part 4: Industrial application microcomputers
GB/T 2423
Environmental Test

Working temperature: 0 ℃~50 ℃
Storage temperature: -20 ℃~70 ℃

Damp heat: 40 ℃ 95% RH
Panel protection level: IP65
Drop in packaging: The machine is packaged at a of 1 meter, with 8 edges and 6 sides dropping once each
Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration1 cycle
Impact: Half sine pulse, peak acceleration of 10g, pulse of 11ms, and 3 times of impact in the working direction Noise: (0) dB

Product Type

Specifications Description

Remarks

HPC-1511

15 inch LCD screen/resistive touch screen/J1900/DDR3L 1333MHz 4GB/M-SATA 128GB



HPC-1511

15 inch LCD screen/resistive touch screen/J4125/DDR4 2133/2400MHz 4GB/M2 2280 Sata 128GB



HPC-1511

15 inch LCD screen/resistive touch screen/J6412/DDR4 3200MHz 4GB/M2 2280 NVME128GB



HPC-1511

15 inch LCD screen/resistive touch screen/6200U/DDR4 2133MHz 8GB/M-SATA 128G



HPC-1511

15 inch LCD screen/resistive touch screen/8145U/DDR4 2666MHz 8GB/M2 2280 NVME 128GB
