Model

EPC-1211

Size (mm)

208x130x40mm

Pilot lamp

Power status indicator light, integrated with power button

Weight (kg)

≤ 1.0kg

Heat dissipation method

Passive cooling design without fans

Color

Space Grey

Overall Power Consumption

< 15W

Shell Material

aluminum alloy

Installation method

Compatible with embedded, wall mounted, and desktop versions

CPU

Gemini Lake

Alder Lake

BIOS

AMI  BIOS

AMI  BIOS

Chipset

Intel® SOC

Intel® SOC

Pattern display

Intel® UHD Graphics 600

Intel® HD Graphics Nuclear display

Network

2*RLT8111H/8111G

1*I226V,1*RTL8111H (Optional)

Sound effects

Realtek ALC662/ALC887

Realtek ALC897

Memory

DDR4 2133/2400MHz  Max 8GB

DDR4 3200MHz  Max 32GB

Hard disk

M.2 2280 Sata 128GB

M.2 2280 NVME 256GB SSD

Function

Supports WiFi, Bluetooth, 3G/4G/5G modules, supports diskless startup, network wake-up, and power on/off

Supports WiFi, Bluetooth, 3G/4G/5G modules, supports diskless startup, network wake-up, and power on/off

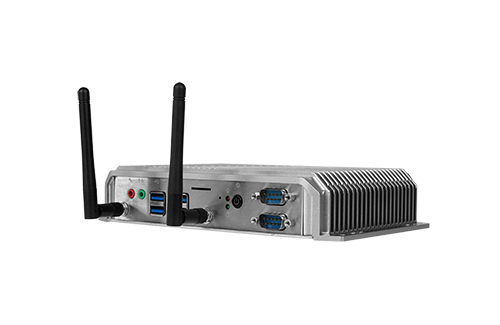

• Front I/O interface

1 * Power on button (LED)
2 * LED (HDD&WiFi)
1 * Reset&CLR_ CMOS buttons
1 * SIM card slot
4 * USB3.0 interface
1 * LINE OUT interface
1 * MIC-IN interface
2 * Antenna
2 * COM

1 * Power on button (LED)
1 * HDD_ LED
1 * SIM card slot
2 * USB3.2 (10Gbps)
1 * Fully functional Type-C
1 * microSD card slot
1 * Audio interface

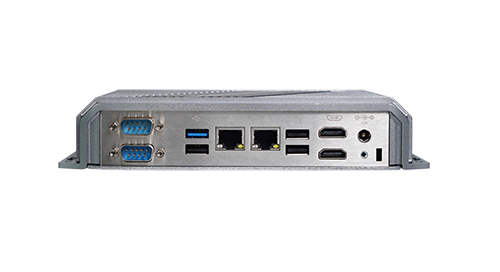

Rear I/O interface

1 * USB2.0 interface
3 * USB3.0 interface
2 * LAN interface
2 * USB2.0 interface
2 * HDMI interface
1 * DC IN interface
1 * M3 grounding screw hole
2 * COM

4 * USB2.0 interface
1 * Type-C (Power)
2 * LAN interface
1 * ghost&cl_ CMOS button
1 * HDMI interface
1 * VGA interface (optional)
1 * RS232 COM interface (optional)

Power input

DC12~19V power supply

DC12V  power supply

OS System

Support WIN10 / Linux

Certificate

CCC / CE / RoHs/FCC

National standard

EMC

GB/T 9254.1-2021
Radio disturbance limits and measurement methods for information technology equipment

Radiation disturbance (B) level
Conducted disturbance (B) level

GB/T 17618-2015
Information technology equipment immunity limits and measurement methods

Meet the requirements of 6KV contact discharge and 12KV air discharge

Safety regulations

GB 4943.1-2011
Information technology equipment security - Part 1: General requirements

Grounding resistance: ≤ 0.1 Ω
Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC;
For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
Insulation resistance: ≥ 100M Ω
Leakage current: ground leakage current ≤ 3.5mA

Environment

GB/T 9813.4-2017
General specification for computers - Part 4: Industrial application microcomputers
GB/T 2423
environmental test

Working temperature: (-20) ℃~(60) ℃
Storage temperature: (-20) ℃~(70) ℃
Constant damp heat: (40) ℃ (95)% RH
Drop in packaging: The machine is packaged at a of 1 meter, with 8 edges and 6 sides dropping once each
Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration 1 cycle
Impact: Half sine pulse, peak acceleration of 10g, pulse of 11ms, and 3 times of impact in the working direction,
Noise: (0) dB

Model

Specification Description

notes

EPC-1211

Intel® Celeron J4125/DDR3L  1333MHz  4GB/M-SATA 128GB
