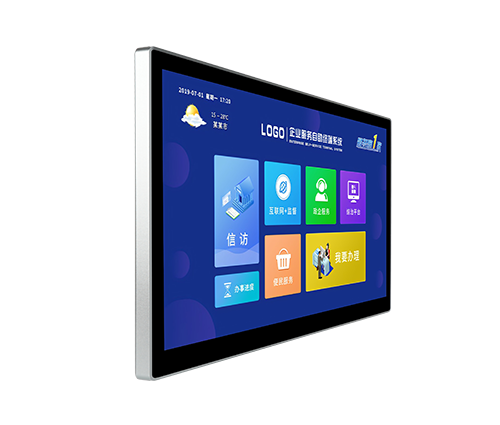

PPC-2111
Detailed
Support for Intel ® Bay Trail, Gemini lake, Elkhart lake, 6th generation Sky lake&7th generation Kaby lake, 8th generation Whiskeylake&10th generation Cometlake U processors
Supports SO-DIMM, M-SATA, M.2 Sata, M.2 NVME storage
Standard 21.5-inch high-definition display screen, capacitive touch screen, supporting dual display
Standard configuration with 4USB and 1LAN interfaces, expandable with 2USB and multi specification COM interfaces
Supports 1 * MINI-PCIE (for WIFI), 1 * SIM, and supports 3G, 4G, and 5G modules
Supports VESA bracket installation, wall mounted and desktop mounted

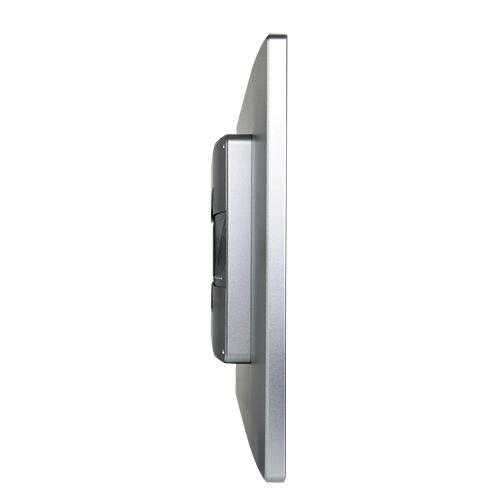

The complete machine has a windless design, patented industrial design, and is aesthetically pleasing
Panel protection level: IP65 waterproof and dustproof
ESD Protection: ±6kV (Contact ), ± 12kV (Air)
The product can be widely used in industries such as industrial automation, environmental monitoring, wind power generation, 3D machine vision inspection, etc

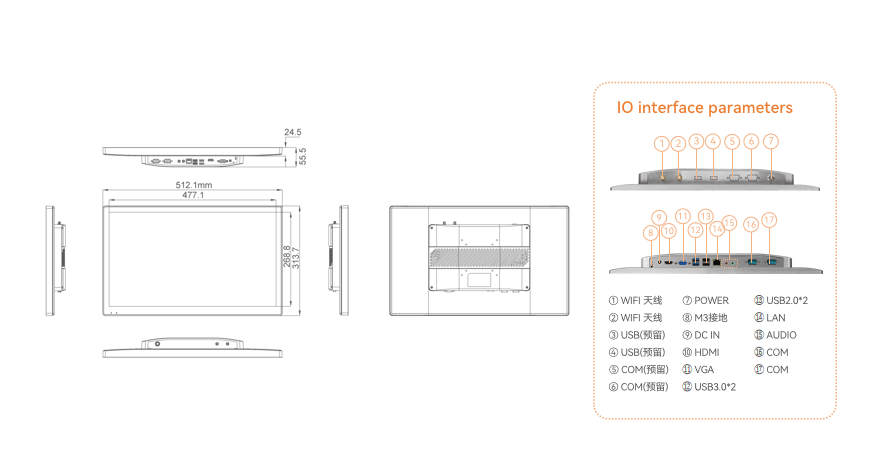

Product Model  PPC-2111 Pilot lamp Reserved power status indicator light under the screen Dimensions  511x313x42mm
Display 21.5 Trumpet 2 x 4 ? 3W Weight < 3.4kg
Touch Screen  Capacitive Touch Screen Heat dissipation Fanless Product  colour Space Gray
Resolution Ratio  1920*1080 Overall Power Consumption <29W (screen 15W), slightly higher power consumption for 6-10 generations Chassis material Aluminum alloy structure
Luminance  300cd/㎡ Installation Method Compatible with embedded, wall mounted, and desktop versions
CPU Support for Intel ®  Bay Trail J1900 processor Support  Intel® Gemini lake J4125/J4105/N4000
BIOS AMI  BIOS AMI  BIOS
Chipset  Intel® SOC Intel® SOC
Display  Intel ® HD Graphics integrated graphics card Intel UHD Graphics 600
Network  Realtek RTL8111  RTL8111H/RTL8111G
Audio Realtek ALC269HD  Realtek ALC269HD
Memory  Single strip DDR3L 1333MHz Max 8G Single strip DDR4 2133/2400MHz  Max 8G
Hard dive  M-SATA 128G M-SATA 128GB
Functions  Supports WiFi, Bluetooth, 4G, and watchdog functions Supports WiFi, Bluetooth, 4G, and watchdog functions
Front I/O 1 * Switch (with LED)； 2 * Antenna； 2 * USB/2 * COM (reserved) 1 * Switch (with LED)；2 * Antenna； 2 * USB/2 * COM (reserved)

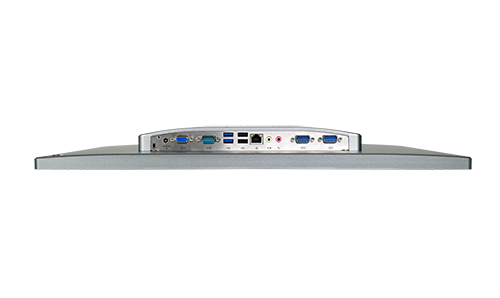

Rear I/O  1 * LINE OUT interface
1 * MIC-IN interface
1 * LAN interface
3 * USB2.0 interface
1 * USB3.0 interface
1 * HDMI interface
1 * VGA interface
1 * DC interface
2*COM232
1 * M3 grounding screw hole		 1 * LINE OUT interface
1 * MIC-IN interface
1 * LAN interface
2 * USB2.0 interface
2 * USB3.0 interface
1 * VGA interface
1 * HDMI interface
1 * DC interface
2*COM232
1 * M3 grounding screw hole
Power IN DC 12V DC power supply DC 12V DC power supply
OS support Windows 7 / Windows 10 / Linux Windows 7 / Windows 10 / Linux
Power dapter INPUT : 100-240V50/60Hz ; Output : 12.0V/5.0A INPUT : 100-240V50/60Hz ; Output : 12.0V/5.0A
Certification CCC / CE /FCC/ RoHs CCC / CE /FCC/ RoHs
CPU Support for Intel ®   Elkhart Lake J6412/J6413 processor Support for Intel ® Kaby Lake&Sky Lake processors (6th to 7th generation)
BIOS AMI  BIOS AMI  BIOS
Chipset  Intel® SOC Intel® SOC
Display  Intel® UHD Graphics Intel® Graphics 610
Network  Realtek 8111H/8111G Realtek RTL8111H/8111G
Audio Realtek ALC269HD   HS-100B Audio Decoding Controller
Memory  Single strip DDR4 3200MHz Max 32G DDR4 2133MHz Max 32G
Hard dive  M.2 2280 Sata 128GB M.2 2280 NVME 256GB
Functions  Supports WiFi, Bluetooth, 4G, 5G modules Supports WiFi, Bluetooth, 4G, 5G modules
Front I/O 1 * Switch (with LED)；2 * Antenna；2 * USB/2 * COM (reserved) 1 * Switch (with LED)；2 * Antenna；
2 * USB/2 * COM (reserved)
Rear I/O  1 * LINE OUT interface
1 * MIC-IN interface
1 * LAN interface
2 * USB2.0 interface
2 * USB3.2 Gen2 interface
1 * VGA interface
1 * HDMI interface
1 * DC interface
2*COM232
1 * M3 grounding screw hole		 1 * LINE OUT interface
1 * MIC-IN interface
1 * LAN interface
2 * USB2.0 interface
2 * USB3.0 interface
1 * VGA interface
1 * HDMI interface
1 * DC interface
2*COM232
1*CLR_ CMOS buttons
1 * M3 grounding screw hole
Power IN DC 12V DC power supply DC 12V DC power supply
OS support Windows 7 / Windows 10 / Linux Windows 7 / Windows 10 / Linux
Power Adapter INPUT : 100-240V50/60Hz  INPUT : 100-240V50/60Hz
Output : 12.0V/5.0A Output : 12.0V/5.0A
Certification CCC / CE / FCC / RoHs CCC / CE / FCC/ RoHs
CPU Support for Intel ® 8th generation Whiskeylake&10th generation Cometlake U processor
BIOS AMI  BIOS
Chipset  Intel® SOC
Display  Intel® UHD Graphics
Network  Realtek RLT8111H/8111G
Audio HS-100B USB Audio Decoding Controller
Memory  DDR4 2666MHz Max 32G
Hard dive  M.2 2280 NVME 256GB
Functions  Support WiFi, Bluetooth, 3G/4G module, 5G module, electric auto start, hardware monitoring, wake-on-LAN
Front I/O 1 * Switch (with LED)；2 * Antenna；
2 * USB/2 * COM (reserved)
Rear I/O  1 * LINE OUT interface
1 * MIC-IN interface
1 * LAN interface
2 * USB3.2 Gen2 interface
2 * USB3.2 Gen2 interface
1 * VGA interface
1 * HDMI interface
1 * DC interface
2*COM232
1*CLR_ CMOS buttons
Note: USB3.2 is Gen1 5Gbps when using the 8th generation U processor
Power IN DC 12V DC power supply
OS support Windows 7 / Windows 10 / Linux
Power Adapter INPUT : 100-240V50/60Hz
Output : 12.0V/5.0A
Certification CCC / CE / FCC / RoHs
  National standard Parameter Description
EMC GB/T 9254.1-2021
Radio disturbance limits and measurement methods for information technology equipment

Radiation disturbance (B) level

Conducted disturbance (B) level
GB/T 17618-2015                                                            Information technology equipment immunity limits and measurement methods Meet the requirements of 6KV contact discharge and 12KV air discharge
Safety GB 4943.1-2011
Information technology equipment security - Part 1: General requirements		 Grounding resistance: ≤ 0.1 Ω
Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
Insulation resistance: ≥ 100M Ω
Leakage current: ground leakage current ≤ 3.5mA
Environment GB/T 9813.4-2017
General specification for computers - Part 4: Industrial application microcomputers
GB/T 2423
Environmental Test

Working temperature: 0 ℃~50 ℃
Storage temperature: -20 ℃~70 ℃

Damp heat: 40 ℃ 95% RH
Panel protection level: IP65
Drop in packaging: The machine is packaged at a of 1 meter, with 8 edges and 6 sides dropping once each
Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration1 cycle
Impact: Half sine pulse, peak acceleration of 10g, pulse of 11ms, and 3 times of impact in the working direction Noise: (0) dB

Product Type

Specifications Description

Remarks

PPC-2111

21.5 LCD screen/capacitive touch screen/J1900/DDR3L 1333MHz 4GB/M-SATA 128GB



PPC-2111

21.5 LCD screen/capacitive touch screen/J4125/DDR4 2133/2400MHz 4GB/M-SATA 128GB



PPC-2111

21.5 LCD screen/capacitive touch screen/J6412/DDR4 3200MHz 4GB/M2 2280 Sata 128GB



PPC-2111

21.5 LCD screen/capacitive touch screen/6200U/DDR4 2133MHz 8GB/M2 2280 NVME 256GB



PPC-2111

21.5 LCD screen/capacitive touch screen/8145U/DDR4 2666MHz 8GB/M2 2280 NVME 256GB

USB3.2为 Gen1  5Gbps
