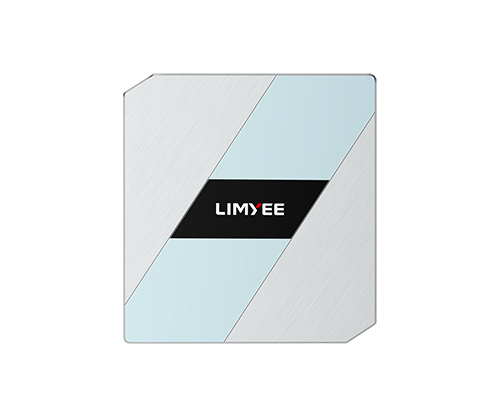

Model

BOX-1211

Size(mm)

≤ 140x130x42mm

pilot lamp

Power status indicator light, integrated with power button

Weight(kg)

≤ 0.6kg

Heat dissipation method

High performance active cooling design, silent fan

Color

Space Grey

Overall Power Consumption

< 15W

Shell Material

aluminum alloy

Installation method

Compatible with embedded, wall mounted, and desktop versions

CPU

Gemini Lake

Tiger Lake

BIOS

AMI  BIOS

AMI  BIOS

Chipset

Intel® SOC

Intel® SOC

Intel® UHD Graphics 600

Intel® HD Graphics Nuclear display

Network

2*RLT8111H/8111G

1*I226V,1*RTL8111H (Optional)

Sound effects

Realtek ALC662/ALC887

Realtek ALC897

Memory

DDR4 2133/2400MHz  Max 8G

DDR4 3200MHz  Max 32GB

Hard disk

M.2 2280 Sata 128GB

M.2 2280 NVME 256GB SSD

Function

Supports WiFi, Bluetooth, 4G, watchdog, diskless startup, network wake-up, and power on/off

Supports WiFi, Bluetooth, 4G, watchdog, diskless startup, network wake-up, and power on/off

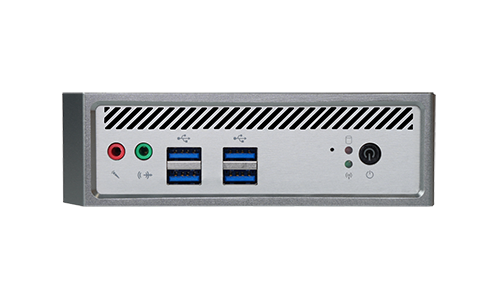

Front I/O interface

1 * Power on button (LED)

2 * LED (HDD&WiFi)

1 * Reset&CLR_ CMOS buttons

4 * USB3.0 interface

1 * LINE OUT interface

1 * MIC-IN interface

1 * Power on button (LED)

1 * HDD_ LED

2 * USB3.2 (10Gbps)

1 * Fully functional Type-C

1 * microSD card slot

1 * Audio interface

Rear I/O interface

1 * USB2.0 interface

1 * USB3.0 interface

2 * LAN interface

2 * USB2.0 interface

2 * HDMI interface

1 * DC IN interface

1 * M3 grounding screw hole

4 * USB2.0 interface

1 * Type-C (Power)

2 * LAN interface

1 * ghost&cl_ CMOS button

1 * HDMI interface

1 * VGA interface (optional)

1 * RS232 COM interface (optional)

1 * M3 grounding screw hole

Power input

DC 12~19V DC power supply

DC 12V power supply

OS system

Support WIN10 / Linux

Certification

CCC / CE / RoHs/FCC

National standard

Parameter Description

EMC

GB/T 9254.1-2021
Radio disturbance limits and measurement methods for information technology equipment

Radiation disturbance (B) level
Conducted disturbance (B) level

GB/T 17618-2015
Information technology equipment immunity limits and measurement methods

Meet the requirements of 6KV contact discharge and 12KV air discharge

Safety regulations

GB 4943.1-2011
Information technology equipment security - Part 1: General requirements

Grounding resistance: ≤ 0.1 Ω
Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC;
For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
Insulation resistance: ≥ 100M Ω
Leakage current: ground leakage current ≤ 3.5mA

Environment

GB/T 9813.4-2017
General specification for computers - Part 4: Industrial application microcomputers
GB/T 2423
environmental test

Working temperature: (0) ℃~(50) ℃
Storage temperature: (-20) ℃~(70) ℃
Constant damp heat: (40) ℃ (95)% RH
Drop in packaging: The machine is packaged at a of 1 meter, with 8 edges and 6 sides dropping once each
Vibration: frequency range 5-5.5Hz, single amplitude displacement 25.4mm; Frequency range 5.5~200Hz/acceleration 1.0g, one scan time of 12 minutes, vibration direction: vertical direction; Test duration 90 minutes
Shock: The shock wave type is a half sine pulse, with a peak acceleration of 10g, a pulse of 11ms, and 3 times of impact. The direction of impact is vertical,
Noise: (0) dB

Model

Specification Description

Notes

BOX-1212

J1900/DDR3L 1333HMz  4GB/M-SATA 128GB
