EC3-EHLT-6C2L
Detailed
Product Parameters
Support for Intel ® Elkhart Lake J6412/J6413 Processor
Supports single channel SO-DIMM, DDR4 3200MHz, Max16GB, supports LVDS/EDP+HDMI+DP display output, three displays synchronous and asynchronous
On board 2 * Intel I226-V (transmission rate 2.5Gb)
Supports 3 * USB3.2 Gen1 (5Gbps), 7 * USB2.0
1 * M.2 M Key, 1 * SATA Port
1 * M.2 A Key, supporting WiFi/Bluetooth module expansion; 1 * M.2 B Key, supporting 4G/5G module expansion
DC 12V power supply

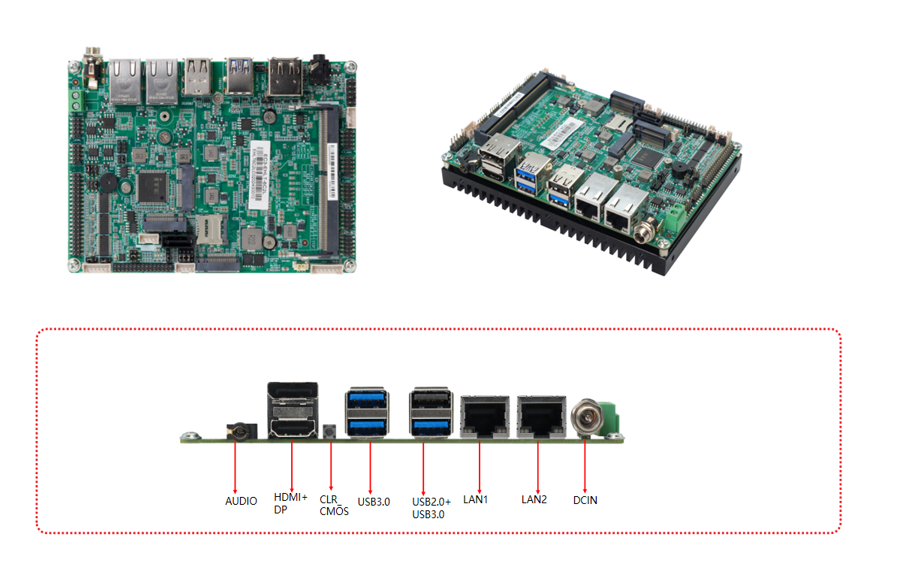

0755-83650405 | CPU | Intel® Elkhart Lake J6412/J6413 Processor | Post I/O interface | 1 * DC_ IN port |
| Chipset | Intel® SOC | 1 * LAN2 port | |
| Display chip | Intel ® Core graphics card | 1 * LAN1 port | |
| Display output | LVDS/EDP+HDMI+DP | 1 * USB3.0+1 * USB2.0 double seater port | |
| Multi display support | Three display synchronous asynchronous | 2 * USB3.2 Gen1 (5Gbps) port | |
| USB | 3*USB3.2 Gen2（10Gbps） ，7*USB2.0 | 1 * HDMI+1 * DP port | |
| Memory | 1*SO-DIMM DDR4 3200MHz Max32GB | 1 * AUDIO interface | |
| sound effects | On board ALC269 audio decoding controller; Integrated power amplifier（ 2.2W@4 Ω MAX) |
Internal I/O | 1 * F_ AUDIO pin |
| 1 * Speaker pin | |||
| 3 * F_ USB2.0 pin (expandable 6 * USB2.0) | |||
| Network card | On board 2 * Intel I226-V (transmission rate 2.5Gb) | 1 * F_ PANEL pin | |
| storage | 1*SATA Port ; 1*M.2 M Key | 1 * GPIO pin | |
| expansion slot | 1 * M.2 A Key, supporting WiFi/Bluetooth module expansion; 1 * M.2 B Key, supporting 4G/5G module expansion |
1 * PS2 pin | |
| 1 * BKCL pin | |||
| 1 * LVDS pin | |||
| I/O chip | IT8786E-I | 1 * INVERT socket | |
| BIOS | AMI BIOS | 1 * SATA socket | |
| power supply | DC/2PIN AT 12V power supply | 1 * SATA_ PWR socket | |
| Cooling System | Equipped with No Fan heat sink | 1 * EDP socket | |
| Environment | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ 0%~95% relative humidity, non condensing | 6 * COM pin | |
| Size | 156X102mm | 1 * AT_ IN socket |
