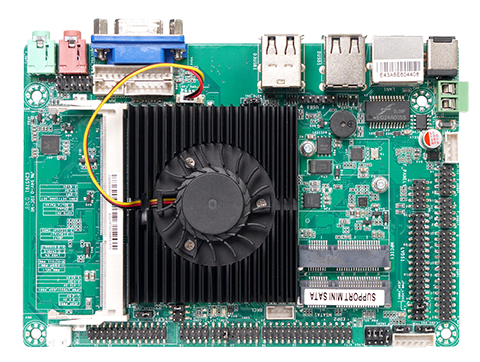

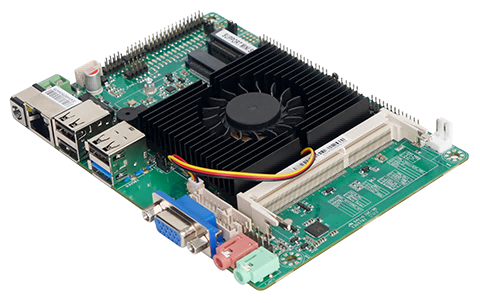

EC3-J19TD-2C1L-GPOS
Detailed
Product Parameters
Support for Intel ® Bay Trail J1900/J1800/N2840 processors
Single channel SO-DIMM, DDR3L 1333MHz, Max8GB
Supports LVDS/EDP1+EDP2+VGA, dual display synchronous
On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card
Supports 8 * USB2.0+1 * USB3.0
Supports 2 * COM, JCOM1/2 defaults to supporting the 9th Pin with optional power
Supports 1 * SATA and 1 * Mini SATA
Supports 1 * Mini PCIE (supports WiFi/Bluetooth modules)
DC 12V power supply, support power on auto start, watchdog, wake-on-LAN

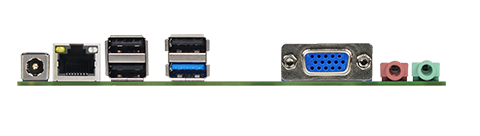

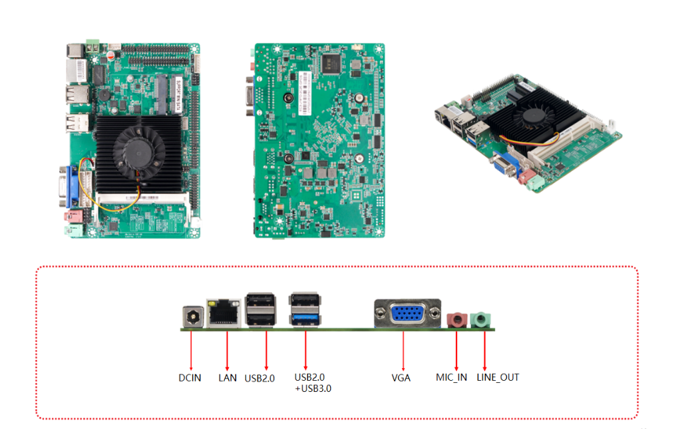

0755-83650405 | CPU | Intel ® Gulf Trail J1900/J1800/N2840 processor | Post I/O interface | 1 * DC interface 1 * LAN |
| Chipset | Intel® SOC | 1 interface | |
| Display chip | Intel ® HD Graphics nuclear display | 2 * USB2.0 interface | |
| Display output | LVDS/EDP1+EDP2+VGA | 1 * USB3.0+1 * USB2.0 interface | |
| Multi display support | Supports dual display synchronous/asynchronous output | 1 * VGA interface | |
| USB | 1*USB3.0+8*USB2.0 | 1 * LINE OUT interface | |
| Memory | 1*SO-DIMM DDR3L 1333MHz Max8GB | 1 * MIC-IN interface | |
| sound effects | On board ALC897 HD audio decoding controller; Independent power amplifier ALC105 3W@4 Ω MAX |
Internal I/O | 1 * F_ AUDIO pin |
| Network card | On board 1 * Realtek RLT8111H/8111G Gigabit Ethernet card | 1 * SPEAKER pin | |
| 1 * VGA_ H1 pin | |||
| storage | 1*SATA, 1*Mini-SATA | 1 * PS/2 pin | |
| expansion slot | 1 * Mini PCIE (supports WiFi/Bluetooth modules) | 1 * LPT_ PWR pin | |
| 1 * LPT pin | |||
| I/O chip | ITE8784E-I | 2 * COM RS232 pin | |
| BIOS | AMI BIOS | 1 * EDP2 pin | |
| power supply | DC/2PIN AT 12V power supply | 1 * BKCL pin | |
| 1 * INCN pin | |||
| Cooling System | Equipped with CPU heat sink | 1 * LVDS/EDP | |
| 1 pin (optional function) | |||
| Environment | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ 0%~95% relative humidity, non condensing |
1 * F_ PANEL pin | |
| 1 * GPIO pin | |||
| 3 * F_ USB pin (expandable 5 * USB2.0) | |||
| Size | 156X102mm | 1 * RJ11 socket | |
| 1 * 2Pin AT power socket |
