DZ-GLKT-2C1L
Detailed
Product Parameters
Support for Intel ® Gemini Lake J4125/J4105/N4000 processor
Supports single channel SO-DIMM, DDR4 2400MHz, Max8GB
Supports LVDS1/EDP1+LVDS2/EDP2+HDMI display output, three displays simultaneously asynchronous
On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card
Supports 4 * USB3.2 Gen1 (5Gbps), 6 * USB2.0
1 * miniSATA
1 * miniPCIE, supporting WiFi/Bluetooth module expansion;
DC 12V power supply (optional with air head power supply)
CPU Intel® Gemini Lake J4125/J4105/N4000 processor
Chipset Intel® SOC
Display chip Intel ®  Ultra High Definition Graphics Card 600
Display output LVDS1/EDP1+LVDS2/EDP2+HDMI
Multi display support Three display synchronous asynchronous
USB 4*USB3.2 Gen1（5Gbps） ，6*USB2.0
Memory 1*SO-DIMM DDR4 2400MHz Max8GB
sound effects On board ALC269 audio decoding controller;
Integrated power amplifier 2.2W@4 Ω MAX
Network card On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card
storage 1*miniSATA
expansion slot 1 * miniPCIE, supporting WiFi/Bluetooth module expansion
I/O chip IT8784E-I
BIOS AMI  BIOS
power supply DC/AT 12V (optional short head configuration)
Cooling System  Equipped with fanless heat sink
Environment Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
0%~95% relative humidity, non condensing
Size 148X102mm

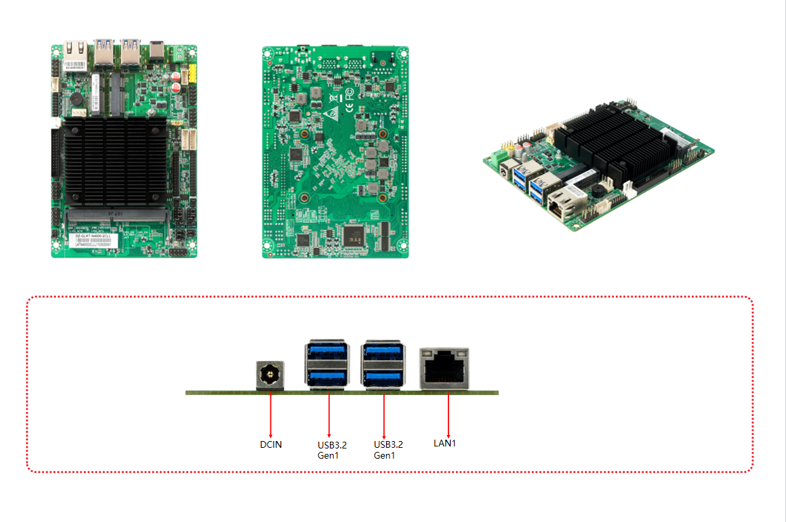

Post I/O interface 1 * DC_ IN port (optional 4PIN aviation head)
2 * USB3.2 Gen1 (5Gbps) port
2 * USB3.2 Gen1 (5Gbps) port
1 * LAN port
Internal I/O 1 * F_ AUDIO pin
1 * Speaker pin
1 * JHDMI pin
1 * CPU_ FAN pin
1 * LPT_ PWR pin
1 * LPT pin
2 * COM pin
1 * F_ PANEL pin
2 * LVDS/EDP pins
2 * INCN socket
3 * F_ USB2.0 pin (expandable 6 * USB2.0)
1 * JRJ11 socket
1 * AT_ IN socket
Model DIMM ExpansionSStorageStorage Storage Display output Radiating Power supply
USB2.0 USB3.0 LAN LPT SPEAKE MINI-PCIE Msata LVDS EDP HDMI DC
DZ-GLKT-N4000-2CLE 1 6 4 1 * Gigabit √ √ √ √ √ √ √ Profile 12V
DZ-GLKT-J4125-2CLE 1 6 4 1 * Gigabit √ √ √ √ √ √ √ Profile 12V
DZ-GLKT-J4105-2CLE 1 6 4 1 * Gigabit √ √ √ √ √ √ √ Profile 12V
DZ-GLKT-N4000-2C2E 1 6 4 1 * Gigabit √ √ √ √ √ √ √ Profile 12V
DZ-GLKT-J4125-2C2E 1 6 4 1 * Gigabit √ √ √ √ √ √ √ Profile 12V
DZ-GLKT-J4105-2C2E 1 6 4 1 * Gigabit √ √ √ √ √ √ √ Profile 12V
DZ-GLKT-N4000-2CLL 1 6 4 1 * Gigabit √ √ √ √ √ √ √ Profile 12V
DZ-GLKT-J4125-2CLL 1 6 4 1 * Gigabit √ √ √ √ √ √ √ Profile 12V
DZ-GLKT-J4105-2CLL 1 6 4 1 * Gigabit √ √ √ √ √ √ √ Profile 12V
