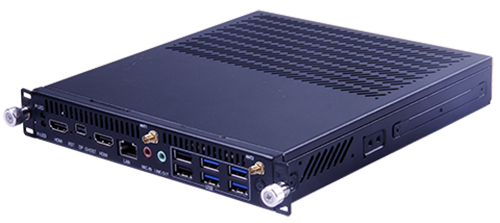

M0141(OPS)
Detailed
The product meets the standard OPS-C design specifications
Intel 11th Tiger Lake U Platform
Supports HDMI1.4+DP1.4+HDMI2.0 display output
Supports HDMI2.0 OPS interface with maximum support 4K@60Hz display
Supports 3 * USB3.0+3 * USB2.0+1 * Type-C USB3.0
Supports DDR4 dual channel memory 3200MHz Max32G
Support Key M NGFF M.2 interface, expandable SSD module
Support Key E NGFF M.2 interface, expandable WiFi+Bluetooth
Support hardware one click system backup and restore
Enhanced USB signal driving capability, compatible with various touch boxes and other devices
0755-83650405 | CPU | Supports Intel 11th Tiger Lake U platform processors | IO terminal display | Intel ® Iris Xe Graphics HDMI1.4: Up to display resolution 4096x2304@30Hz DP1.4: Up to display resolution 7680x4320@60Hz |
| Chipset | SoC | ||
| BIOS | BIOS AMI 128Mbit, supporting functions such as write protection, diskless startup, wake-on-LAN, power on startup, timed startup, watchdog remote switch on/off device intelligent recognition, etc | ||
| Memory | 2xSO-DIMM，DDR4 3200MHz Max32GB | ||
| Storage | 1 x SATA interface (for 2.5“Hard disk )SATA3.0 | ||
| 1 x M.2 Key M interface (NVMe), interface M.2 2280mm SATA &PCIe SSD | I/O interface | USB 3 x USB3.0 3 x USB2.0 LAN :1 x Type-C USB3.0；1 x RJ45 Socket 1 x DC power socket 1 x OPS80pin LED 1 x POWER LED 1 x HDD LED Button :1 x Power Button 1 x RESET (short press to restart and long press CLR-CMOS) 1 x Ghost key (system one click restore) |
|
| OPS display | HDMI2.0: Up to display resolution 4096x2304@60Hz | ||
| Network | Wired 1 x RTL8111H 10/100/1000M (onboard RJ45) | ||
| Wireless 1 x M.2 Key E(For WIFI+Bluetooth module) | |||
| Audio frequency | 1 x LINE-OUT &1 x MIC-IN | ||
| Power | DC 12~19V | ||
| Watchdog | Functional downtime and system restart | ||
| Interval 1~65535sec | |||
| Operating system | windows10 / Linux | ||
| AC adapter | AC:100-240V 60/50HZ | ||
| power supply | INPUT : 100-240V 1.5A 50/60 Hz | ||
| Output : 12.0v-7.0A | |||
| Power :90W | |||
| Environment | Working temperature: -10~60 ℃; 0%~95% relative humidity, non condensing | ||
| Size | 180 (L) x 195 (W) x 42(H)mm |
