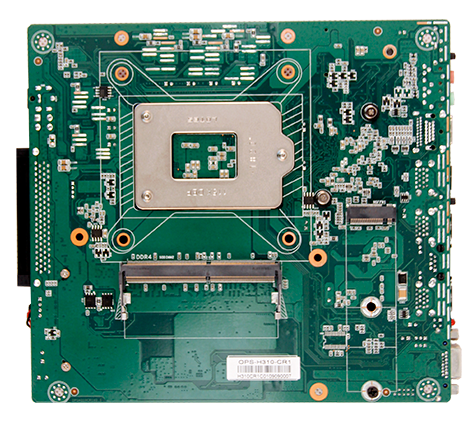

OPS-H310-CR1
Detailed
Intel Coffee lake&Coffee lake-R I3/I5/I7 65W CPU
Onboard VGA/HDMI/DP display output
Supports HDMI2.0 with maximum support 4K@60FPS OPS interface
Supports DP1.2 with maximum support 4K@30FPS IO interface
Supports HDMI 1.4b with maximum support 4K@30FPS IO interface
Supports DDR4 dual channel memory, better supporting 4K video encoding and decoding
Support Key M NGFF M.2 interface, expandable SSD module
Support Key A NGFF M.2 interface, scalable WiFi/Bluetooth
Support hardware one click system backup and restore
Adhere to EUP (ErP) energy-saving standards, with standby power consumption below 0.5W
USB interface supports short circuit protection, power short circuit system does not crash or restart
Support intelligent fan control
Unique design, supporting OPS interface for live and undamaged plugging and unplugging
Enhanced USB signal driving capability, compatible with various touch boxes and other devices

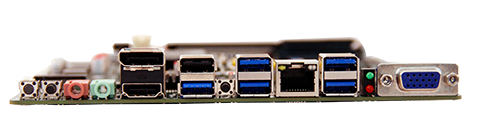

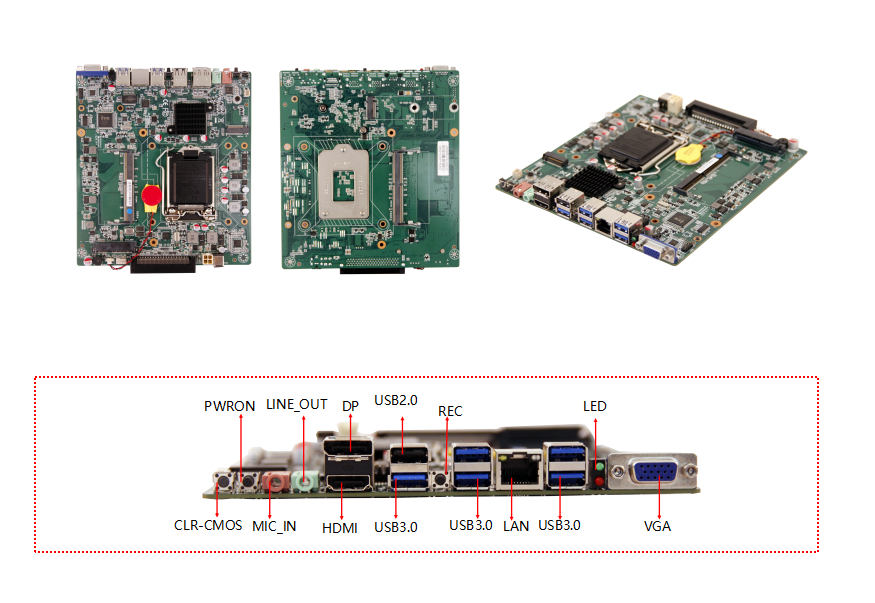

0755-83650405 | CPU | intel coffee lake&Coffee lake-R I3/I5/I7 65W CPU | I/O terminal display | 5 * USB3.0 port, 1 * USB2.0 port 1 * VGA port 1 * HDMI port 1 * DP port 1 * LAN port 1 * MIC-IN port 1 * LINE OUT port 1 * DCIN port 1 * REC button 1 * PWR - ON button 1 * C - CMOS button 1 set of LED power hard drive indicators |
| Chipset | H310 | ||
| BIOS | Intel CPU built-in display core | ||
| Display output | VGA/HDMI/DP | ||
| Multi display support | VGA+HDMI/VGA+DP/HDMI+DP； | ||
| VGA+HDMI+DP | |||
| USB | 5*USB3.0 ,1*USB2.0 | ||
| Memory | 2*SO-DIMM，DDR4 2400/2666MHz | ||
| sound effects | On board Realtek ALC662HD audio decoding controller | ||
| network card | On board Realtek RTL8111H Gigabit Network Card | ||
| Storage | 1 * 2.5 laptop hard drive interface (SATA HDD) | ||
| expansion slot | 1*NGFF-M 2280 support SATA SSD; | ||
| 1*NGFF-A 2230 support WIFI+Bluetooth; | |||
| 1 * OPS-C socket | |||
| I/O Chip | ITE8784E-I | I/O interface | 1 * OPS-C port 1 * COM pin 1 * GPIO pin 1 * RST pin 1 * ATX pin 1 * CFAN pin |
| BIOS | AMI BIOS | ||
| Power | DC/4PIN ATX 12~19V Wide voltage power supply | ||
| Mainboard size | 190X170MM | ||
| COOLING SYSTEM | OPS dedicated double ball radiator | ||
| operation temperature | Working temperature: -10-60 ℃; Storage: -20 ℃~75 ℃; | ||
| 0%~95% relative humidity, non condensing |
