ZO-D2000P-7C2L
Detailed
Product Parameters
Support domestic Phytium Tengrui D2000 CPU; Quad core 8 threads; Main frequency 2.0-2.6GHz
Supports dual channel SO-DIMM, DDR4 2666MHz, Max32GB
Supports independent graphics card display output
Onboard 2 * Motorcomm YT8521SC-CA Gigabit Network Card
Supports 4 * USB3.2 Gen1 (5Gbps) and 10 * USB2.0; 2 * COM port; 5 * COM pin; COM1 supports TTL/RS232; (Among them, COM4-7, JUSB2, JUSB3, F-USB3 functions and 2 * PCI functions are optional)
1 * M.2 M Key, supporting PCIEX4/SATA3.0 signal adaptation; 3 * SATA3.0
ATX 24Pin ATX+4Pin power supply

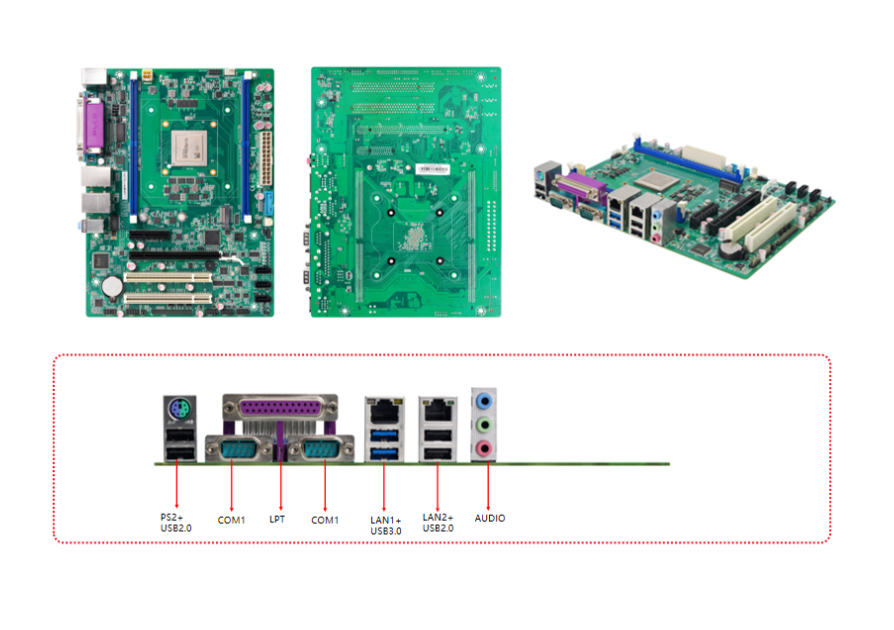

CPU Support for domestic  Phytium Tengrui D2000 processor Post I/O interface 1 * PS2+2 * USB2.0 three-layer socket port
2 * COM+1 * LPT port
1 * LAN1+2 * USB3.0 three-layer socket port
1 * LAN1+2 * USB2.0 three-layer socket port
1 * AUDIO three-layer socket port
Chipset SOC
Display chip Independent graphics card display
Display output /
Multi display support Three display synchronous asynchronous
USB 4*USB3.2 Gen1（5Gbps） ，10*USB2.0
Memory 2*SO-DIMM DDR4 2666MHz Max32GB Internal I/O 1 * F_ AUDIO pin
3 * F_ USB2.0 (Scalable 6 * USB2.0)
5 * COM pin
1 * F_ PANEL pin
3 * SATA pin
1 * SYS_ FAN pin
1 * F_ USB3 pin (expandable 2 * USB3.0)
1 * CFAN pin
1 * JATG_ CPU pin
2 * PCI socket
1 * PCIEX16 socket
1 * PCIEX4 socket
sound effects On board ALC897 audio decoding controller
Network card Onboard 2 * Motorcomm YT8521SC-CA Gigabit Network Card
storage 1 * M.2 M Key, supporting PCIEX4/SATA signal adaptation;
3 * SATA3.0
expansion slot /
I/O chip IT8786E-I
BIOS AMI  BIOS
power supply ATX 24Pin+4Pin   power supply
Cooling System  Require self equipped standard 115X hole position radiator
Environment Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
0%~95% relative humidity, non condensing
Size 244X185mm
