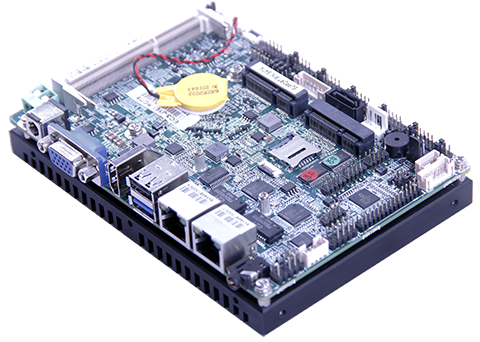

EC3-J19T-6CD8
Detailed
Product Parameters
Support for Bayrail processors J1900/J1800/N2807
Supports 1 * SO-DIMM, DDR3L 1333MHz Max 8GB
Supports multiple display options including VGA, HDMI, and LVDS for any dual display
Supports 1 * USB3.0, 9 * USB2.0
Supports 1 * SATA2.0 and 1 * MINI-SATA
Supports 1 * Mini PCIE (for WIFI/Bluetooth/4G Card)
Supports 6 * COM232, (COM2 supports 232/485, COM1 supports TTL/232)
Standard 3.5-inch motherboard, supporting call auto start, watchdog, wake-on-LAN, regular startup, 9~24V wide voltage power supply

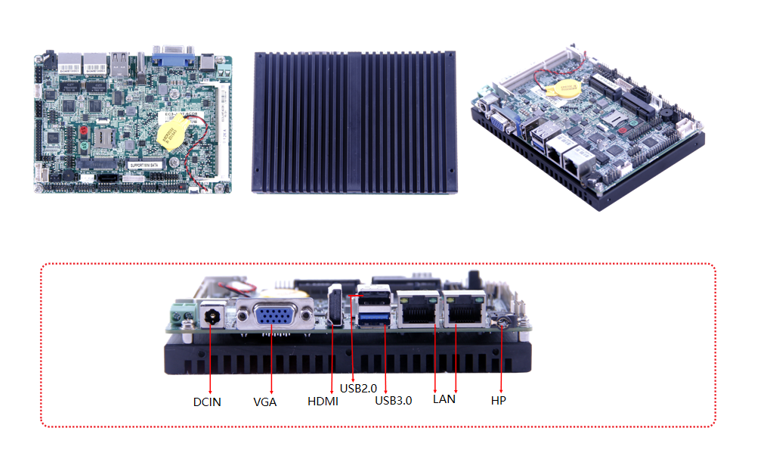

0755-83650405 | CPU | Support for Bayrail processors J1900/J1800/N2807 | Post I/O interface | 1 * DC interface |
| Chipset | Intel® SOC | 1 * VGA interface | |
| Display chip | Intel ® HD Graphics nuclear display | 1 * HDMI interface | |
| Display output | LVDS+VGA LVDS+HDMI VGA+HDMI | 1 * USB3.0+USB2.0 interface | |
| Multi display support | Supports dual display synchronous/asynchronous display | 2 * LAN | |
| USB | 1*USB3.0+9*USB2.0 | 1 * AUDIO interface | |
| Memory | 1*SO-DIMM，DDR3L 1333MHz Max 8GB | Internal I/O | 1 * F_ AUDIO pin |
| sound effects | On board Realtek ALC662HD audio decoding controller | 1 * JSPK pin | |
| Network card | On board 2 * Intel 82583V Gigabit Ethernet card | 1 * F_ PANEL pin | |
| storage | 1 * SATA2.0 interface 1 * mSATA | 1 * LVDS pin | |
| expansion slot | 1 * Mini_ Pcie (for WIFI+Bluetooth/4G expansion module) | 1 * INCN1 pin | |
| I/O chip | ITE8786E-I | 1 * BKCL pin | |
| BIOS | AMI BIOS | 4 * F_ USB 2.0 pin (expandable 8 * USB 2.0) | |
| power supply | DC 12-24V wide voltage power supply | 1 * FAN pin | |

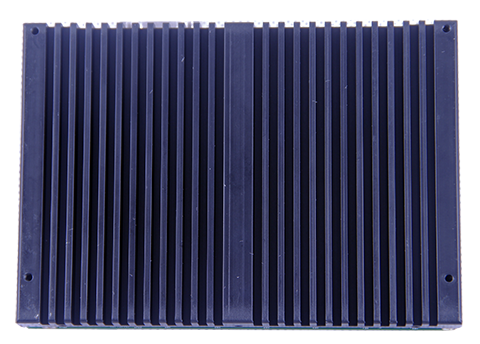

| Cooling System | Equipped with CPU heat sink | 6 * COM pin | |
| Environment | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ 0%~95% relative humidity, non condensing |
1 * SATA socket | |
| 1 * SATA_ PWR pin | |||
| 1 * JPS2 pin | |||
| Size | 146X102mm | 1 * GPIO pin | |
| 1 * 2PIN ATX socket |
