ZO-GLKT-4C2L-GPOS
Detailed
Support for Intel Gemini lake J4125/J4105/N4000 Processor
Single channel SO-DIMM, DDR4 2133/2400MHz, Max8GB
Supports LVDS1/EDP1+LVDS2/EDP2+VGA, three display synchronous
Supports 1 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional dual network)
Supports 2 * USB3.0+8 * USB2.0
Supports 4 * COM232 (COM2 supports 1 RS485 option)
Supports 1 * SATA3.0 and 1 * mSATA
Supports 1 * Mini PCIE slot (WIFI/Bluetooth module); 1 * SIM card slot
Support power on auto start, PXE start, wake-on-LAN
Support for one RJ11 cash box with optional options

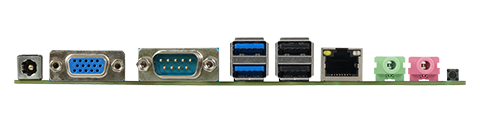

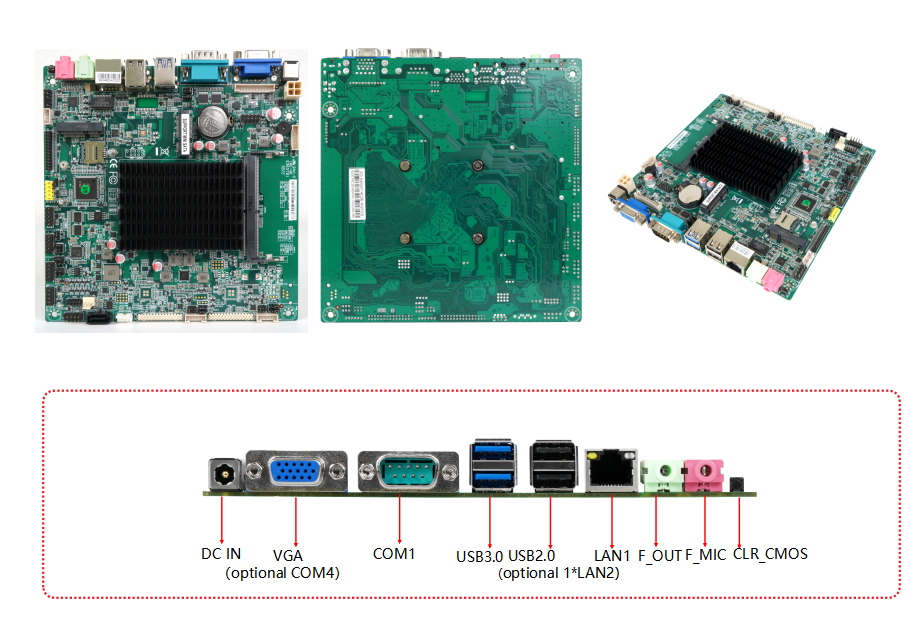

CPU Support for Intel ® Gemini lake J4125/J4105/N4000 Processor Post I/O interface 1 * DC port
1 * VGA port (optional COM4)
1 * COM1 port
2 * USB3.0 port
2 * USB 2.0 ports (optional 1 * LAN2)
1 * LAN1 port
1 * MIC-IN port
1 * LINE OUT port
Chipset Intel® SOC
Display chip Intel® HD Graphics 600
Display output LVDS1(Main display) +LVDS2+VGA
LVDS1(Main display)EDP2+VGA
EDP1(Main display)EDP2+VGA
EDP1(Main display))+LVDS2+VGA
Multi display support Three display synchronous asynchronous
USB 8*USB2.0+2*USB3.0 Internal I/O 1 * F-AUDIO pin
1 * SPEAKER pin
1 * PRINT pin
5 * JUSB2.0 pin (expandable 6 * USB2.0)
2 * COM pin (COM2 supports RS232/485)
1 * F-PANEL pin
1 * GPIO pin
1 * FAN pin
1 * SATA_ Port
1 * SATA_ PWR
1 * LVDS1/EDP1 pin (optional function)
1 * LVDS2/EDP2 pin (optional function)
1 * INVERT1 pin
1 * INVERT2 pin
1 * VGA pin
1 * 4Pin ATX power socket
Memory 1*SO-DIMM  DDR4  2133/2400MHz  Max8GB
sound effects On board Realtek ALC269 audio decoding controller;
Independent power amplifier NS4251 (3W4 Ω MAX)
Network card On board 1 * Realtek 8111H/8111G Gigabit Ethernet card (optional dual network)
storage 1*SATA, 1*mSATA
expansion slot 1*Mini-PCIe(for WIFI / Bluetooth)
I/O chip ITE8786E-I
BIOS AMI  BIOS
power supply DC/4PIN  12V power supply
Cooling System Standard fanless heat sink
Environment Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
0%~95% relative humidity, non condensing
Size Mini-ITX 170*170mm

Motherboard model CPU CPU parameters Graphic parameters RJ11
ZO-J4125T-4CLE-NGPOS J4125 Four wire and four core2.00~2.70GHz LVDS1（Main display）+EDP2+VGA ×
ZO-J4125T-4CLE-GPOS J4125 Four wire and four core2.00~2.70GHz LVDS1（Main display）+EDP2+VGA √
ZO-J4125T-4CLL-NGPOS J4125 Four wire and four core2.00~2.70GHz LVDS1（Main display）+LVDS2+VGA ×
ZO-J4125T-4CLL-GPOS J4125 Four wire and four core2.00~2.70GHz LVDS1（Main display）+LVDS2+VGA √
ZO-J4125T-4CEL-NGPOS J4125 Four wire and four core2.00~2.70GHz EDP1（Main display）+LVDS2+VGA ×
ZO-J4125T-4CEL-GPOS J4125 Four wire and four core2.00~2.70GHz EDP1（Main display）+LVDS2+VGA √
ZO-J4125T-4C2E-NGPOS J4125 Four wire and four core2.00~2.70GHz EDP1（Main display）+EDP2+VGA ×
ZO-J4125T-4C2E-GPOS J4125 Four wire and four core2.00~2.70GHz EDP1（Main display）+EDP2+VGA √
