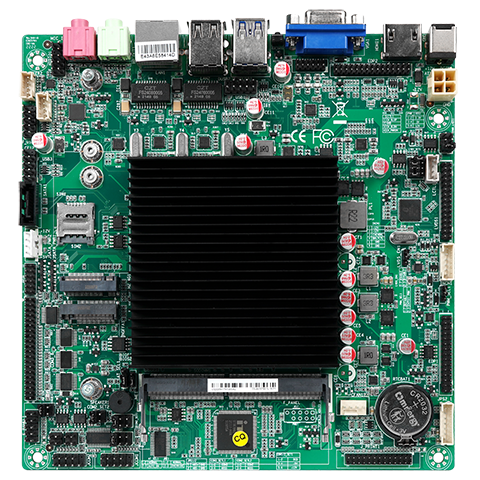

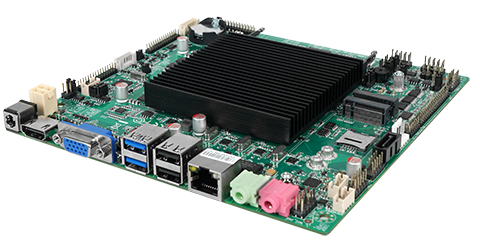

ZO-EHLT-6C2L
Detailed
Support Intel® customizations Elkhart LakeJ6412/J6413
1*SO-DIMM DDR4 2933/2666MHz Max16GB
Support VGA、HDMI/EDP2、LVDS/EDP1, Support Triple Display
Support HDMI2.0 4K 60Hz Output
Onboard 1*RTL8106 1000M（Options: 1000M、2*LAN）
Support 2*USB3.2+8*USB2.0
Support 6*COM232，(Option: COM2 can Support 485)
Support 1*M.2 KeyB 1*SATA 1*M.2 KeyE
Onboard 1*MiniPCIe，Support Wifi6+Bluetooth /4G Module
DC12V Power Supply

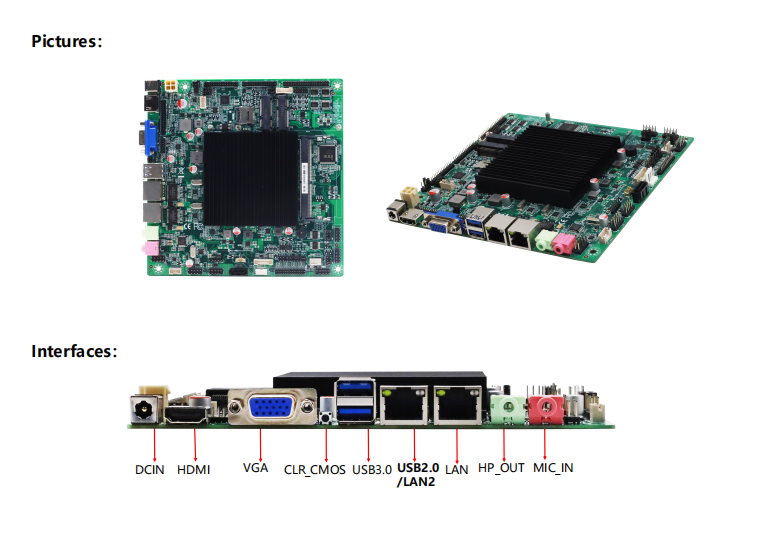

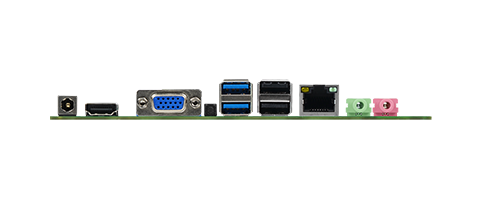

CPU The first Intel® customizations Elkhart Lake Rear I/O 1*DC（φ5.5&2.5mm DC Jack）
1*HDMI
1*VGA
2*USB3.0
1*CMOS
2*USB2.0 （LAN2 or 2*USB2.0 ）
1*HP_OUT
1*MIC_IN
Chipset Elkhart Lake
GPU Intel UHD Graphics
Display VGA、HDMI/EDP2、LVDS/EDP1
Muilt Display VGA+HDMI/EDP2+LVDS/EDP1
Triple Display(synchrony/asynchrony)
USB 2*USB3.0+8*USB2.0
Memory 1*SO-DIMM DDR4 2933MHz Max16GB Internal I/O 1*EDP2 PIN（This pin has no function by default,
if you want to use it, we need to update the BIOS
firmware）
1*VGA_H PIN
1*F-AUDIO PIN
1*SPEAKER PIN
3*F_USB2.0 PIN（can be extended to 7*USB2.0）
1*SATA PIN
1*SATA_PWR PIN
1*JPS2 PIN
1*J_PRINT PIN
1*F_PANEL PIN
2*COM232 PIN（ Support 1*RS485，COM1 and
COM2 support DCD/5V/12V）
1*COM_CON PIN（4*COM232）
1*GPIO PIN
1*LVDS PIN/1*EDP1 PIN
1*INVERT PIN
1*SIM Slot
1*ATX PIN
Audio Onboard audio decoder controller
Built-in Amplifier out3W@4Ω 1.7W@8Ω max
Network Onboard 1*Realtek RTL8106 1000M
(Options: 2*LAN、Gigabit LAN）
Storage 1*M.2 KeyB ; 1*M.2 KeyE
Slot 1*Mini_PCIe( Support WIFI&Bluetooth/4G)
I/O Chip ITE8786E-I/ITE8784E-I
BIOS AMI BIOS
Power DC/4PIN DC12V Power Supply
Cooling FANLESS
Operating Operating:0~60℃; Storage: -20~75℃ 0%~95%
Environment Relative Humidity,Non-condensing
Size 170X170MM

Model DIMM Expansion interface storage display interface radiating power supply
USB2.0 USB3.0 COM232 COM485 LAN LPT SPEAKE M.2 A Key SATA M.2 B Key VGA LVDS EDP HDMI DC
ZO-J6412T-6C1L 1 8 2 6 2 1*Gigabit √ √ √ 1 √ 1 1 0 1 Profile 12V
ZO-J6412T-6C2L 1 6 2 6 2 2*Gigabit √ √ √ 1 √ 1 1 0 1 Profile 12V
ZO-J6412T-6C1L1E 1 8 2 6 2 1*Gigabit √ √ √ 1 √ 1 0 1 1 Profile 12V
ZO-J6412T-6C2L1E 1 6 2 6 2 2*Gigabit √ √ √ 1 √ 1 0 1 1 Profile 12V
ZO-J6412T-6C1LLE 1 8 2 6 2 1*Gigabit √ √ √ 1 √ 1 1 1 0 Profile 12V
ZO-J6412T-6C2LLE 1 6 2 6 2 2*Gigabit √ √ √ 1 √ 1 1 1 0 Profile 12V
ZO-J6412T-6C1L2E 1 8 2 6 2 1*Gigabit √ √ √ 1 √ 1 0 2 0 Profile 12V
ZO-J6412T-6C2L2E 1 6 2 6 2 2*Gigabit √ √ √ 1 √ 1 0 2 0 Profile 12V
Note:
1. Choose between EDP1 and LVDS, and choose between EDP2 and HDMI
2. Except for the dual EDP model, the default EDP2/HDMI function for other models is HDMI. EDP2: This pin has no function by default. If needed, the bios firmware needs to be updated and the motherboard hardware needs to be changed.
3. Even if the HDMI interface is not functional for all models, the interface materials will still be loaded by default. If there is a need to delete the HDMI interface, please provide it separately
