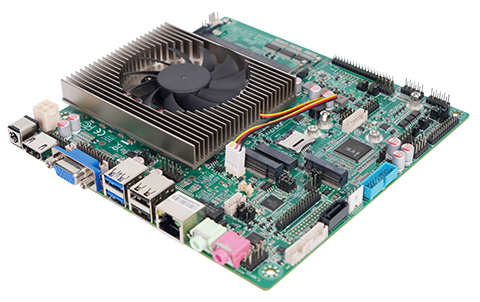

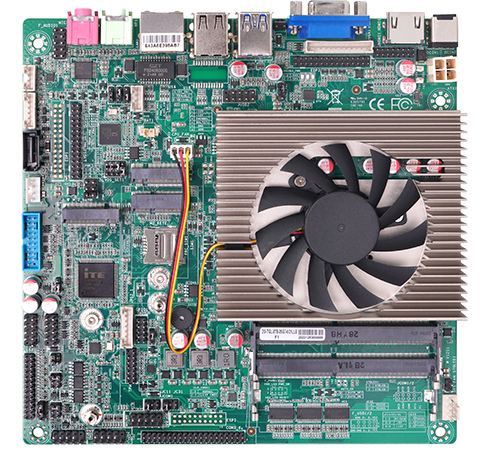

ZO-TGLUTB-6C2L
Detailed
Support for Intel ® Tiger Lake UP3 Processor (1135G7/1145G7, etc.)
Supports dual channel SO-DIMM, DDR4 3200MHz, Max32GB
Supports LVDS1/EDP1+EDP2+HDMI+VGA output, four display synchronous
On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional dual network)
Supports 2 * USB3.2 Gen2 (10Gbps), 2 * USB3.2 Gen1 (5Gbps), and 8 * USB2.0; 6 * COM (COM1/2/3 supports Pin1/9 electrification options, with resistance selection, default to Pin9 electrification)
1 * M.2 M Key, supporting optional PCIEX2/SATA signals; 1 * SATA III (6.0 Gb/s)
1 * M.2 E Key, supporting Wifi6/Bluetooth module expansion; 1 * M.2 B Key, supporting 4G/5G module expansion; 1 * SIM card slot
DC 12V power supply
Specification parameters

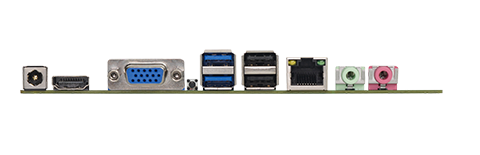

CPU Intel®Tiger Lake-UP3 Processor 1135G7/1145G7 etc  Post I/O interface 1*DC_IN Port
Chipset Intel® SOC 1*HDMI port
Display chip Intel® Sharp torch ®  X ? graphics card 1*VGA port
Display output LVDS1/EDP1+EDP2+HDMI+VGA

1 * CLR_ CMOS buttons
Multi display support Four display synchronous asynchronous 2*USB3.2 Gen2(10Gbps) port
USB 2*USB3.2 Gen2（10Gbps） ，2*USB3.2 Gen1
（5Gbps），8*USB2.0

1 * LAN2 port (optional with 2 * USB2.0)
1*LAN1 port
1*F_OUTport
Memory 2*SO-DIMM DDR4 3200MHz Max32GB 1*F_MIC port
Sound effects On board ALC897 audio decoding controller;
Independent power amplifier NS4251 3W@4 Ω MAX		 Internal I/O pin 1*F_AUDIO contact pin
1*Speaker contact pin
1*INVERT contact pin
Network card On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional dual network)） 2*EDP contact pin
1*LVDS contact pin
Storage 1 * M.2 M Key, supporting PCIEX2/SATA signals
Select; 1 * SATA III (6.0 Gb/s)		 1*BKCL contact pin
1*SATA contact pin
1*SATA_PWR contact pin
Expansion slot 1 * M.2 E Key, supporting Wifi6/Bluetooth module expansion;
1 * M.2 B Key, supporting 4G/5G module expansion; 1 * SIM card slot		 1*F_USB1（extensible 2*USB3.2 Gen1）
3*F_USB2.0（extensible 6*USB2.0）
1*LPT contact pin
IO chip

 IT8786E-I 1*JPS2 contact pin
BIOS  AMI BIOS 1*GPIO  contact pin
Power supply DC/4PIN ATX 12V  power supply  1*TPM contact pin
Heat dissipation system Equipped with fan and radiator 1*F_PANELcontact pin
6*COMcontact pin
Environment

Working temperature: 0-60 ℃;

Storage: -20 ℃~75 ℃0%~95% relative humidity, non condensing

 1*CFAN contact pin
1*SFAN contact pin
1*JHDMI contact pin
Main board size  170X170mm 1*JVGA contact pin
1*ATX_IN socket
