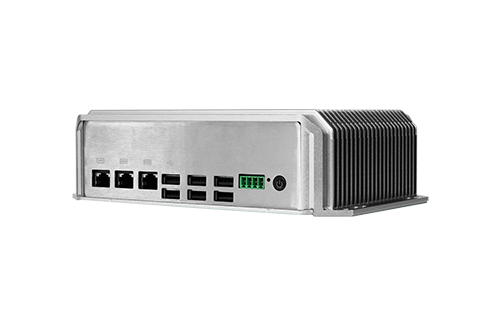

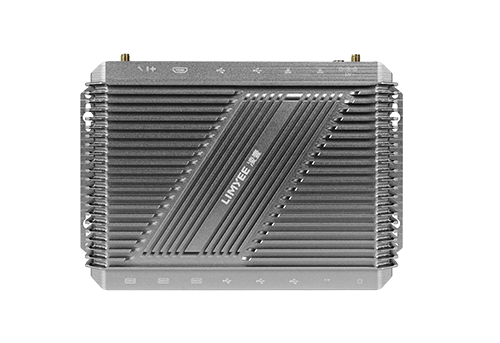

EPC-3511
Detailed
Support for Intel ® Bay Trail, Gemini lake, Elkhart lake, 6th generation Sky lake&7th generation Kaby lake, 8th generation Whiskeylake&10th generation Cometlake U processors
Supports SO-DIMM, M-SATA, M.2 Sata, M.2 NVME storage
Equipped with one HDMI interface and one DP/VGA interface as standard, supporting dual display and asynchronous operation
Standard dual network ports, some configurations support Intel encrypted TPM2.0, and support 8 * GPIO
Supports 1 * Mini PCIE (for WIFI), 1 * SIM, and supports 3G, 4G, and 5G modules
Supports embedded, wall mounted, and desktop installation
9-24V wide voltage power supply, fanless, sealed and dustproof design, stable and reliable, with high protection level
The product is suitable for fields such as production line automation, security monitoring, intelligent logistics sorting, etc

Model

EPC-3511
Size (mm)

≤ 208x130x60mm

Pilot lamp

Power status indicator light, integrated with power button

Weight (kg)

≤ 1.2kg

Heat dissipation method

Passive cooling design without fans

Color

Space Grey

Overall Power Consumption

< 15W

Shell Material

aluminum alloy

Installation method

Compatible with embedded, wall mounted, and desktop versions

CPU

Baytrail

Gemini Lake

Elkhart Lake

Sky Lake（6-7th）

Whiskey Lake（8-10代）

BIOS

AMI  BIOS

AMI  BIOS

AMI  BIOS

AMI  BIOS

AMI  BIOS

Chipset

Intel® SOC

Intel® SOC

Intel® SOC

Intel® SOC

Intel® SOC

Pattern display

Intel® HD Graphics Nuclear display

Intel® HD Graphics Nuclear display

Intel® HD Graphics Nuclear display

Intel® HD Graphics Nuclear display

Intel® HD Graphics Nuclear display

Network

2*Intel 82583V

1 * I219 Gigabit Ethernet card, 1 * I226-V
Gigabit network card

2 * Intel I226-V Gigabit Network Card

2*Intel I211Gigabit Ethernet card

Intel I219+1 x Intel

I211/210 Gigabit network card
Sound effects

Realtek ALC662HD

Realtek ALC269HD

Realtek ALC256HD

Realtek ALC662HD

Realtek ALC662HD

Memory

DDR3L 1333MHz  Max 8G

DDR4 2400MHz Max 8G

DDR4 3200MHz  Max 16G

DDR4 2133 MHz Max 16G

DDR4 2400MHz Max 16G

Hard disk

M-SATA 128G

M.2 2280 Sata 128GB

M.2 2280 NVME128GB

M-SATA 128G

M.2 2280 NVME128GB

Function

Supports WiFi, Bluetooth, and 3G/
4G/5G module, supporting diskless startup, network wake-up, and power on startup

Supports WiFi, Bluetooth, and 3G/
4G/5G module, supporting diskless startup, network wake-up, and power on startup

Supports WiFi, Bluetooth, and 3G/
4G/5G module, supporting diskless startup, network wake-up, and power on startup

Supports WiFi, Bluetooth, and 3G/
4G/5G module, supporting diskless startup, network wake-up, and power on startup

Supports WiFi, Bluetooth, and 3G/
4G/5G module, supporting diskless startup, network wake-up, and power on startup

Front I/O interface

1 * Power on button (LED)
1 * Reset button
6 * USB2.0 (2 * 3) interface
2 * COM232 adopts RJ45 interface
1 * GPIO adopts RJ45 interface
1 * SW (remote switch)

1 * Power on button (LED)
1 * Reset button
6 * USB2.0 (2 * 3) interface
2 * COM232 adopts RJ45 interface
1 * GPIO adopts RJ45 interface
1 * SW (remote switch)

1 * Power on button (LED)
1 * Reset button
6 * USB2.0 (2 * 3) interface
2 * COM232 adopts RJ45 interface
1 * GPIO adopts RJ45 interface
1 * SW (remote switch)

1 * Power on button (LED)
1 * Reset button
6 * USB2.0 (2 * 3) interface
2 * COM232 adopts RJ45 interface
1 * GPIO adopts RJ45 interface
1 * SW (remote switch)

1 * Power on button (LED)
1 * Reset button
6 * USB2.0 (2 * 3) interface
2 * COM232 adopts RJ45 interface
1 * GPIO adopts RJ45 interface
1 * SW (remote switch)

Rear I/O interface

1 * Audio interface
2 * LAN interface
1 * USB2.0 interface
1 * USB3.0 interface
1 * HDMI interface
1 * VGA interface
1 * DC IN interface
4 * COM
1 * M3 grounding screw hole
2 * Antenna

1 * Audio interface
1 * DP interface
1 * HDMI interface
4 * USB3.2 interface (Gen 2)
2 * LAN interface
1 * DC IN interface
1 * CMOS button
4 * COM
1 * M3 grounding screw hole
2 * Antenna

1 * Audio interface
1 * DP interface
1 * HDMI interface
1 * USB2.0 interface
3 * USB3.1 interface
2 * LAN interface
1 * DC IN interface
1 * CMOS button
4 * COM
1 * M3 grounding screw hole
2 * Antenna

1 * Audio interface
2 * LAN interface
2 * USB3.0 interface
1 * HDMI interface
1 * VGA interface
1 * DC IN interface
4 * COM
1 * M3 grounding screw hole
2 * Antenna

1 * Audio interface
1 * DP interface
1 * HDMI interface
4 * USB3.2 interface (Gen 2)
2 * LAN interface
1 * DC IN interface
1 * CMOS button
4 * COM
1 * M3 grounding screw hole
2 * Antenna

power input

 DC 12V~24V wide voltage input

DC12V-24V wide voltage input

DC 9V~24V wide voltage input

DC12V-24V wide voltage input

DC12V-24V wide voltage input

OS system

Support  WIN 7/WIN10/Linux

Certification

CCC / CE / RoHs/FCC



National standard

 Parameter Description

EMC

GB/T 9254.1-2021
Radio disturbance limits and measurement methods for information technology equipment

Radiation disturbance (B) level
Conducted disturbance (B) level

GB/T 17618-2015
Information technology equipment immunity limits and measurement methods

Meet the requirements of 6KV contact discharge and 12KV air discharge

Safety regulations

GB 4943.1-2011
Information technology equipment security - Part 1: General requirements

Grounding resistance: ≤ 0.1 Ω
Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC;
For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
Insulation resistance: ≥ 100M Ω
Leakage current: ground leakage current ≤ 3.5mA

Environment

GB/T 9813.4-2017
General specification for computers - Part 4: Industrial application microcomputers
GB/T 2423
environmental test

Working temperature: (-20) ℃~(60) ℃
Storage temperature: (-20) ℃~(70) ℃
Constant damp heat: (40) ℃ (95)% RH
Drop in packaging: The machine is packaged at a of 1 meter, with 8 edges and 6 sides dropping once each
Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration 1 cycle
Impact: Half sine pulse, peak acceleration of 10g, pulse of 11ms, and 3 times of impact in the working direction,
Noise: (0) dB

工业整机EPC-3511接口图

Model

Specification Description

Notes

EPC-3511

J1900/DDR3L 1333MHz  4GB/M-SATA 128GB



EPC-3511

J4125 /DDR4 2133/2400MHz  4GB/M.2 2280 Sata 128GB



EPC-3511

J6412/DDR4 3200MHz  4GB/M.2 2280 NVME128GB



EPC-3511

6200U/DDR4 2133MHz 8GB/M-SATA 128G



EPC-3511

8145U/DDR4 2666MHz 8GB/M.2 2280 NVME 128GB
